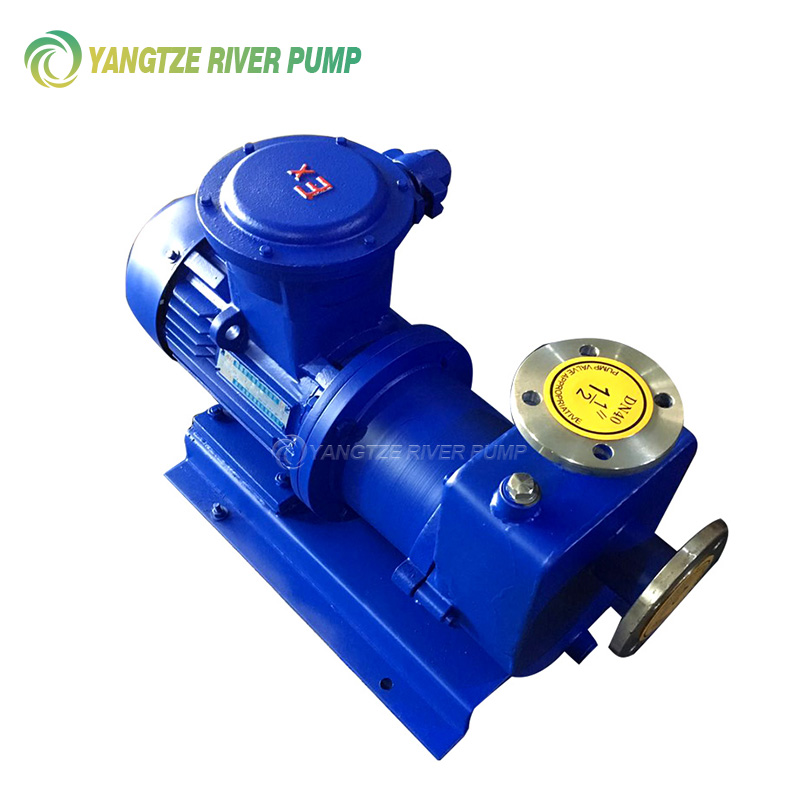

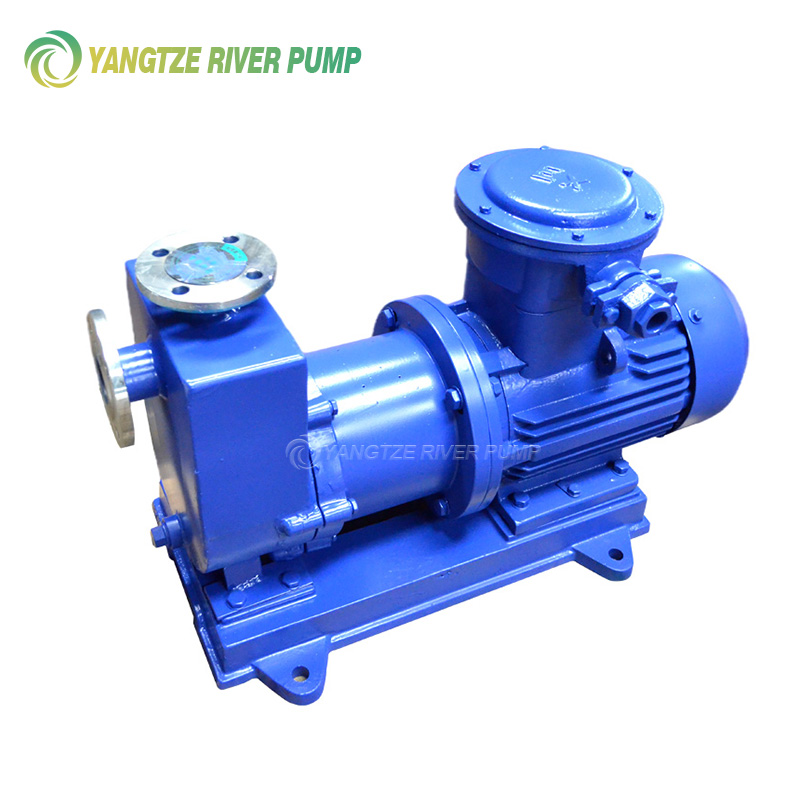

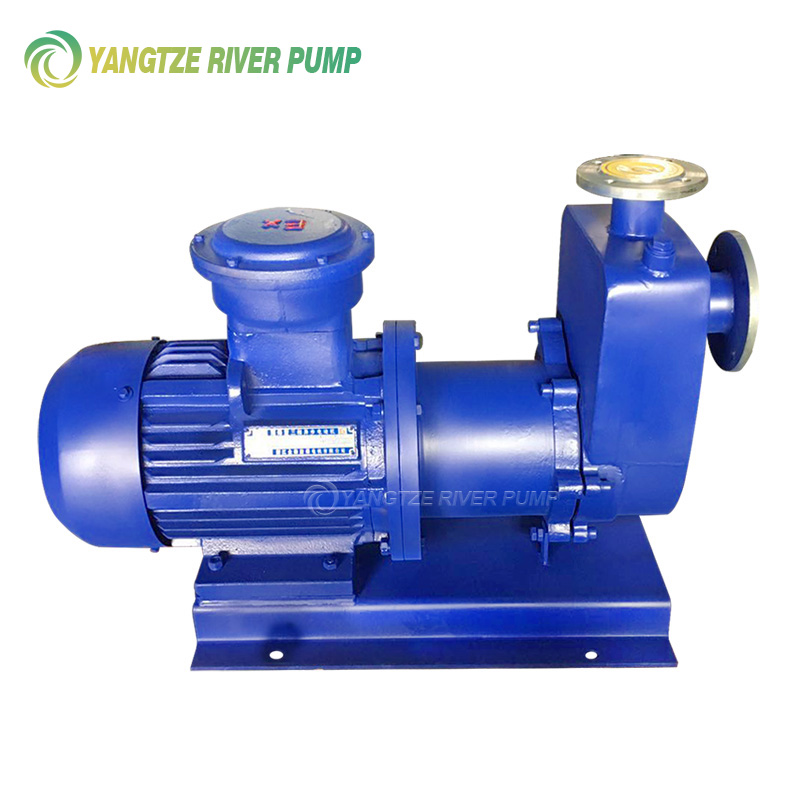

ZCQ Magnetic Drive self-priming Medicators
Summary
ZCQ type Magnetic Drive self-priming Medicators, is a new product that has been successfully researched and tested on the basis of CQ type magnetic pump according to the requirements of many users. ,which not only has the function of CQ type magnetic drive pump, but also self-priming, no need bottom valve and the self-priming height is 4 meters.
Application
Series ZCQ Magnetic Drive self-priming Medicators is a trouble-free product. No mechanical seal is required.
The performance equivalent to a standard Medicators.
• Petrochemical and Fine-Chemical industries
• Biomedical and Pharmaceutical industry
• Metallurgy, ferrous and non-ferrous metal industry
• Painting, plastic and rubber industries
• Electroplating and polishing industries
• Paper, textile and cellulose industries
• Environmental protection, waste gas treatment
• Food and drink industries
Advantages
• Extremely low risk of leakage for fluid or vapor emissions
• Stable Magnetic drive
• Few maintenance in need
• Long service life (around 10 years)
• Alignment of pump and motor is needless
Limitation
• Only transfer clean liquids without solids

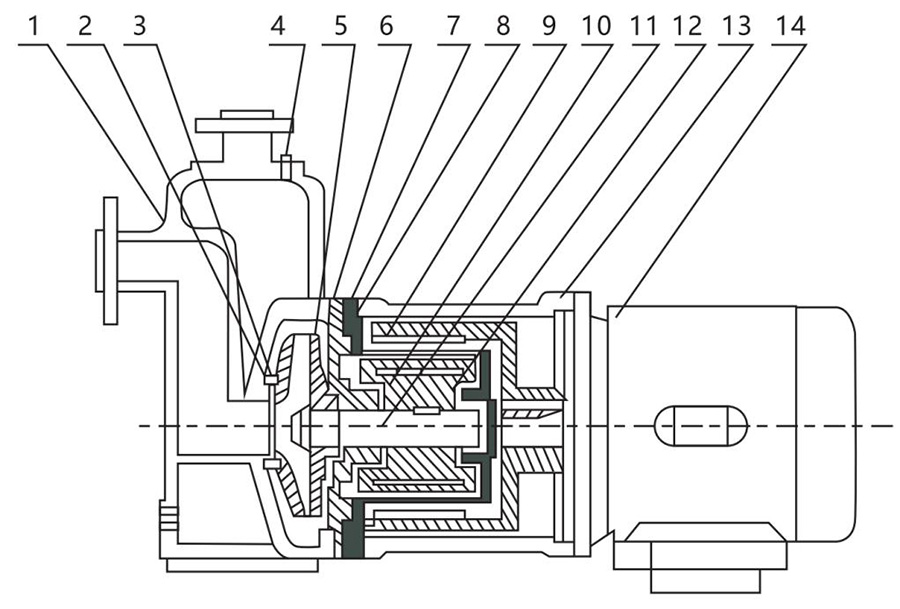

Structure
|
Pump Body |
Water Filling Bolt |
Spacer Plate |
Inner Magnet Assembly |
13.Connect Support |
|
Static Ring |
Impeller |
Spacer Layer |
Shaft |
Motor |
|
Dynamic Ring |
Seal Ring |
Outer Magnet Accembly |
Shaft Sleeve |
|
Product details
|
Working Principle: |
Magnetic Drive self-priming Medicators |
|
Capacity: |
4 ~100 m3/h |
|
Head: |
15 ~32 m |
|
Speed: |
2900 RPM |
|
Inlet diameter: |
25 ~100 mm |
|
Outlet diameter: |
20 ~65 mm |
|
Power of fitted motor: |
1.1 ~55 kW |
|
The highest work pressure: |
1.6 Mpa |
|
Material: |
SS304, SS316, SS316L |
|
Suction Head: |
4m |
|
Viscosity: |
¨Q32¡Á10-6m3/s |
|
Warranty: |
1 Year ( not include wearing parts) |
|
Lead time: |
7~30 Days |
|
Package: |
International Standard Plywood Case |
Why choose us:We are Magnetic Drive self-priming Medicators manufacturers in China for more than 20 years. Hope to cooperate with you sincerley with competitive price. If you are looking for magnetic coupling pump supplier, contact us please.
