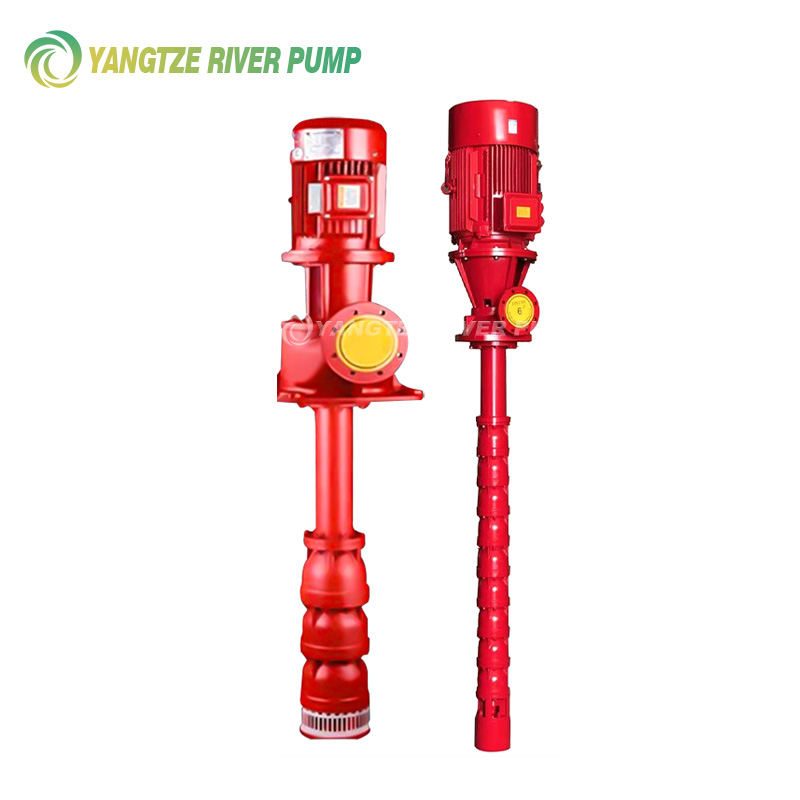

XDB submerged turbine Medicators
Summary
XBD submerged turbine Medicators£¬also called axial flow deep well fire pump set is a immersion pump composed of single or multiple or mixed flow impellers and guide casings, lift pipes, drive shafts, pump plate, motors and other components. The pump base and motor are located on the upper part of the wellhead (or pool), and the power of the motor is transmitted to the impeller shaft through the transmission shaft concentric with the lift pipe, which drives the impeller to generate flow and lift.

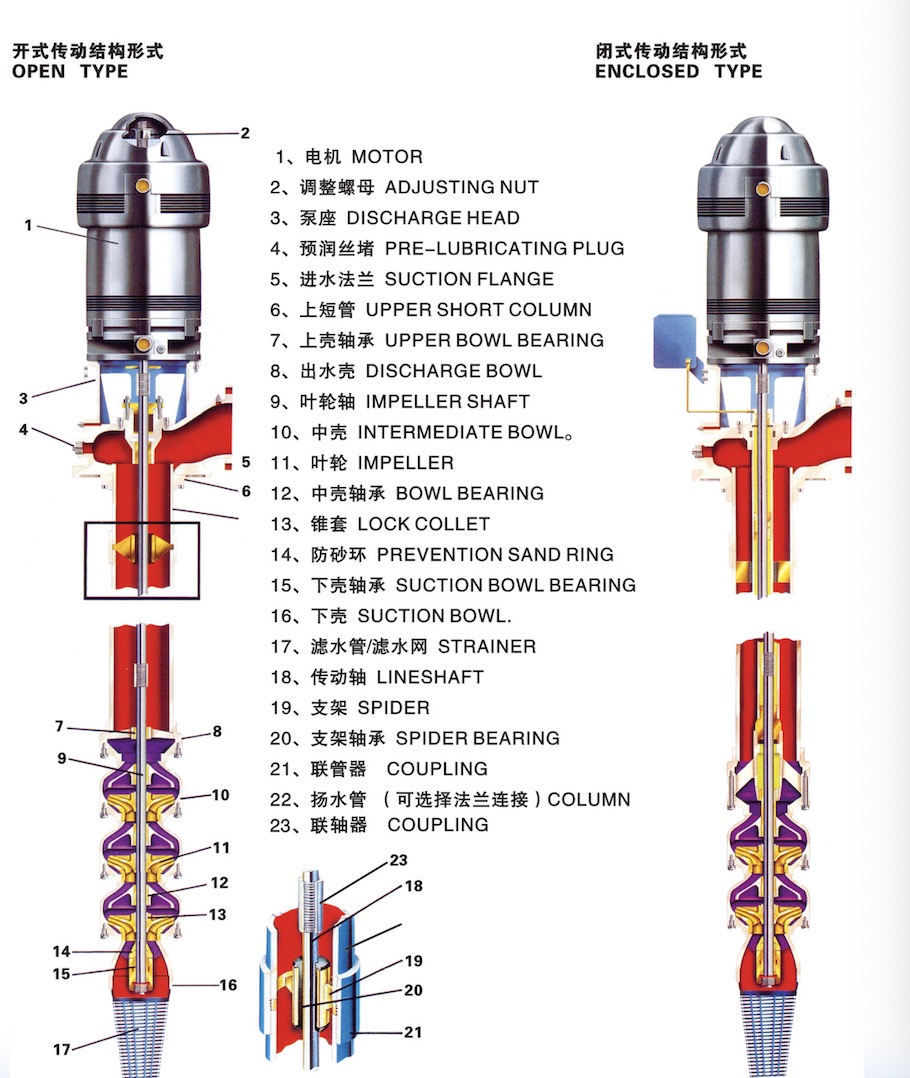

Construction
Product details
Performance range (by design point)
|
Working Principle: |
submerged turbine Medicators |
|
Usage: |
The temperature does not exceed 40¡æ, the solid content (by weight) is not more than 0.01%, |
|
Size: |
32-200mm |
|
Flow: |
1-150L/S |
|
Head: |
0.3-2.1MPa |
|
Power: |
1450-2960r/min |
|
Material: |
Cast Iron, SS304,SS316, Duplex SS, (copper impeller) |
Application
XDB series deep well pumps are applied to lift normal temperature clean water without erosive for water power plant (in an overhaul and leakage), power plant (when reduce the temperature in the recycle, and for domestic service), steel
works (for scale pit), fire-fighting, urban water supply by water plant and agriculture irrigation.
